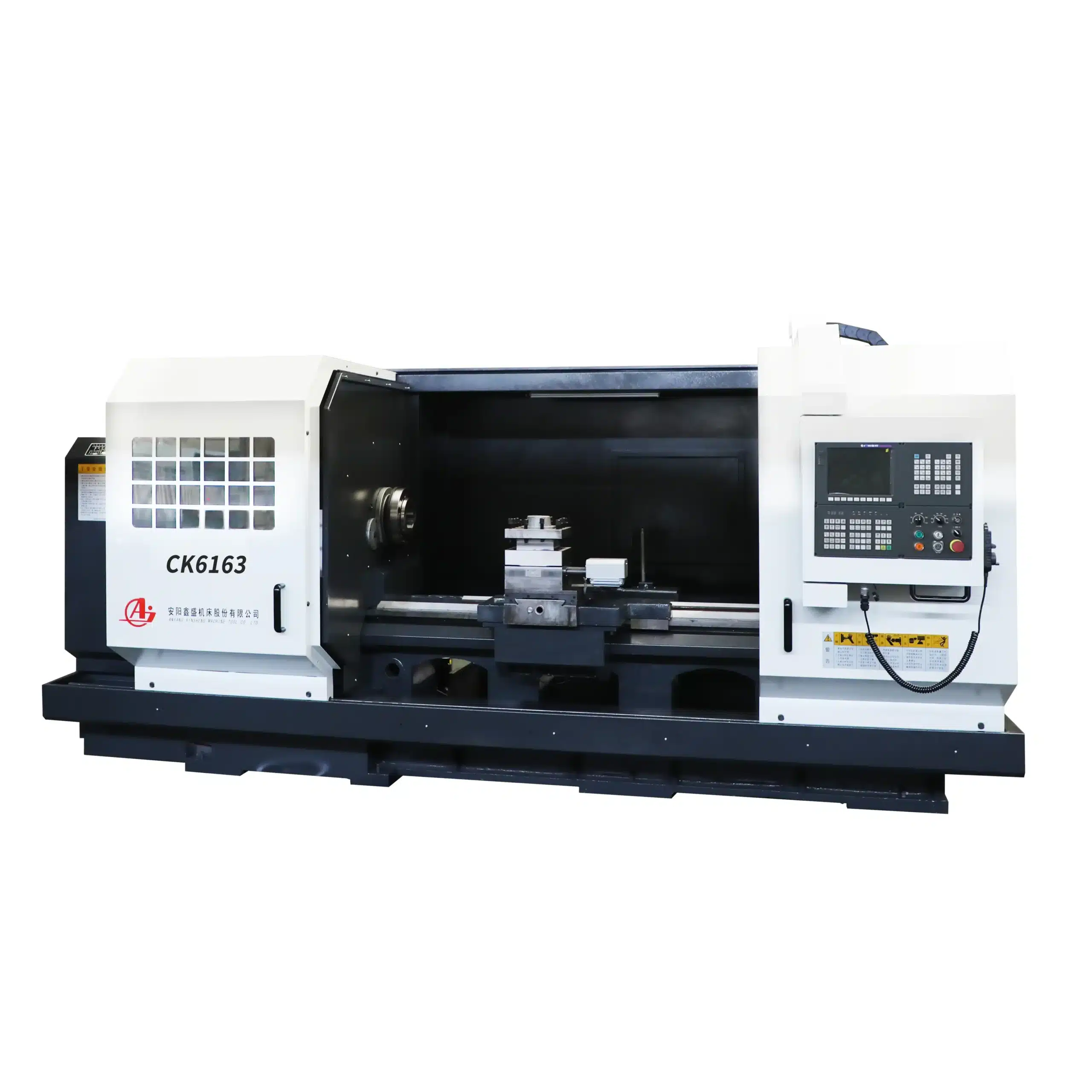

CK6163 Small CNC Lathe

Description

CK/CKP/CKJ6163-6180-6194 Economic CNC Lathe Series

The CK/CKP/CKJ6163-6180-6194 series of economic CNC lathes are equipped with a semi-closed-loop control system. They feature an integral bed structure, with the following specifications:

• For models with a 3000mm specification and below, the transparent integral bed is used.

• For 4000mm/5000mm specifications, a solid integral bed is employed.

• For 6000mm and above, the integral docking bed is used.

These machines are designed for machining a wide range of complex-shaped components, such as shafts, sleeves, and discs. They can perform various turning operations, including turning inner and outer cylindrical surfaces, conical surfaces, arc surfaces, and end faces. The machines are particularly suitable for small to medium batch production and are adaptable to a wide range of processing tasks. The system is easy to program and operate, making it an ideal solution for medium-sized machining tasks.

Key Features:

1. Versatile Control System:

   • The CK series features a frequency conversion and hydraulic four-speed automatic transmission, with a spindle that can achieve stepless speed regulation across various ranges.

   • The CKJ series uses a manual shifting mechanism to provide 18 levels of speed adjustment.

   • The CKP series adopts a manual four-speed system with stepless speed regulation within each range.

2. Integrated Bed Structure:

   • The bed is designed to provide optimal stability and rigidity, ensuring high precision during machining operations.

3. High-Precision Machining:

   • The lathe can process various components with high accuracy, especially for machining cylindrical, conical, and disc-shaped parts.

4. Process Flexibility:

   • The machine is highly adaptable to multiple varieties and small to medium batch production, with quick tool changeovers and ease of programming.

System Function Overview:

1. Continuous Rotating Bodies:
   The system supports machining continuous rotational bodies with various curve profiles as their generatrices, with a resolution of 0.001mm.

2. Thread Machining:
   It is capable of machining cylindrical, conical threads, as well as continuous cylindrical and conical thread connections, and end-face threads.

3. Tool Compensation:
   The lathe features an automatic tool compensation function, ensuring the accuracy of the tool position during long-term operations.

4. Cycle Machining:
   The system includes cycle machining functions, such as blank cycle, thread cycle, and grooving cycle, improving efficiency and simplifying complex operations.

5. Workpiece Coordinate Setting:
   The workpiece coordinate system zero point can be freely set, providing flexibility and ease of operation.

Applications:

• Shafts and Sleeves: Ideal for machining shaft-type and sleeve-type parts, including those with complex profiles and threads.

• Cylindrical and Conical Parts: Perfect for cylindrical, conical, and disc-shaped components, as well as other shapes requiring precision turning.

• Small to Medium Batch Production: The machine’s flexibility makes it suitable for industries requiring frequent changes in production volume and part types, such as automotive, aerospace, and general manufacturing.

The CK/CKP/CKJ6163-6180-6194 CNC lathe series offers excellent performance, flexibility, and ease of use, making it an ideal choice for medium-sized mechanical processing applications. It provides efficient solutions for both single-part and small-batch production, offering precision machining for a wide range of industries.

Parameter:
