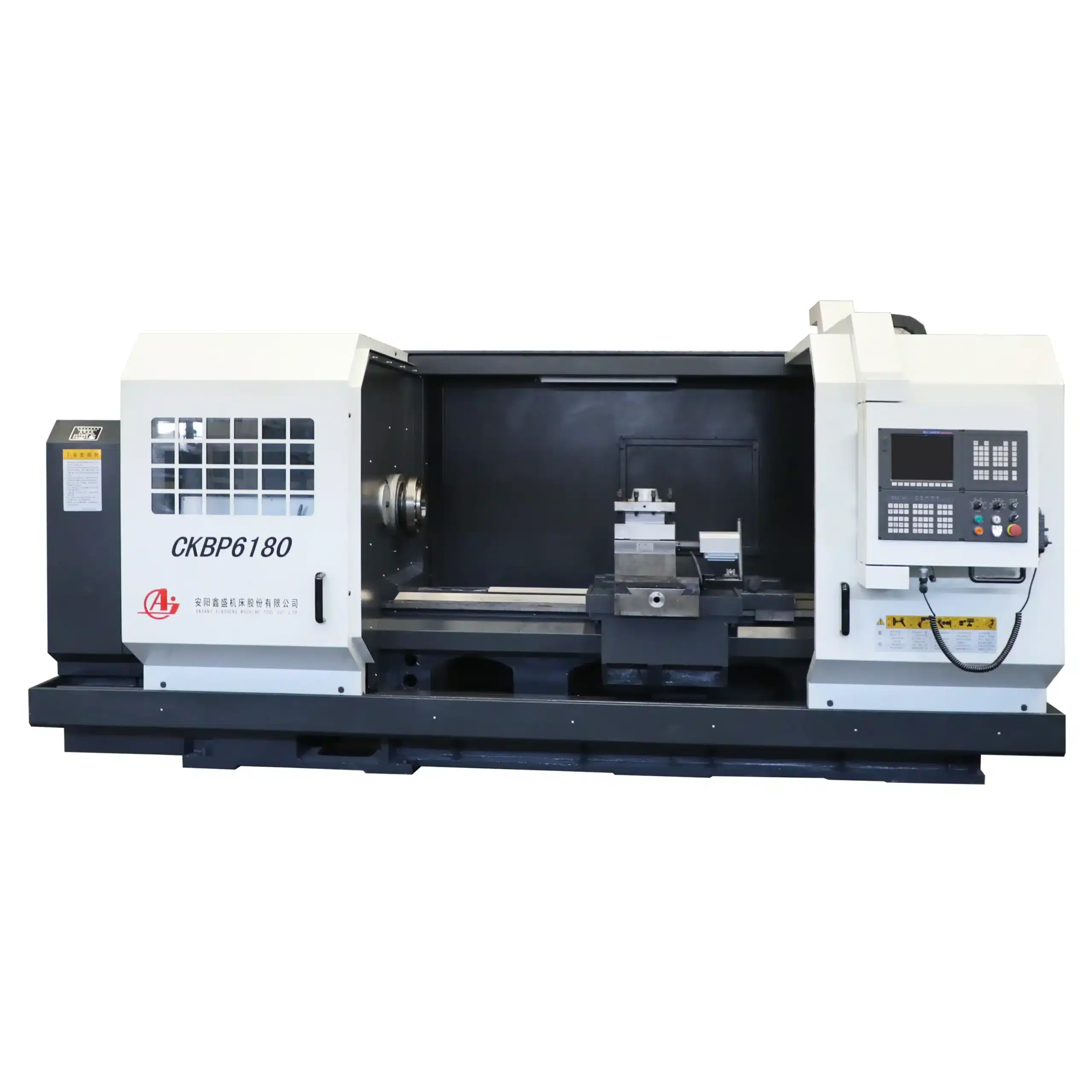

CKB/CKBP/CKBJ6180/61100 Series Standard CNC Lathe

Description

CKB/CKBP/CKBJ6180/61100 Series Standard CNC Lathe

The CKB/CKBP/CKBJ6180/61100 series are standard CNC lathes equipped with a semi-closed-loop control system, designed to be economical and versatile. These machines are suitable for machining a wide variety of complex-shaped components such as shafts, sleeves, and discs, including turning inner and outer cylindrical surfaces, conical surfaces, arc surfaces, end faces, grooving, chamfering, and threading.

Key Features:

1. Bed Structure:

   • For models with specifications ranging from 1000mm to 5000mm, the machine bed is an integral structure.

   • For 6000mm models, the bed is designed with a split structure.

   • The bed is made from high-standard cast iron (HT300), cast in a single step, and subjected to a secondary aging process for enhanced stability and performance.

2. Guideway:

   • The machine features a guideway width of 600mm, ensuring high rigidity and vibration resistance during machining operations.

   • The guideways are induction hardened (hardness exceeding Shore 68°) and are precision-ground using imported grinding machines, ensuring long service life, high precision, and excellent accuracy retention.

3. Headstock:

   • The headstock structure is highly rigid, making it suitable for heavy cutting operations.

   • The gears inside the headstock undergo high-frequency quenching and precision grinding, resulting in high accuracy, smooth operation, and low noise.

4. Spindle Bore Options:

   • The spindle bore is available in two sizes: φ100mm and φ140mm, enabling the lathe to handle larger bar stock or tube-like components for more diverse machining tasks.

5. Guideway Design:

   • The main sliding guideways are covered with TSF soft belts, significantly reducing friction coefficients and improving the servo response performance during operation.

6. Precision Feed Mechanism:

   • Both the X-axis and Z-axis use precision ball screw assemblies, ensuring high machining accuracy, positioning accuracy, and excellent accuracy retention.

   • All moving components are lubricated automatically via a centralized intermittent lubrication system, ensuring smooth and reliable operation.

Applications:

The CKB/CKBP/CKBJ6180/61100 series CNC lathes are ideal for machining a wide variety of components, including:

• Shafts and sleeve-type parts: Perfect for precision turning of long, cylindrical parts.

• Disc-shaped components: Suitable for machining complex geometries, including end faces and grooving.

• Conical and Cylindrical parts: Capable of turning cylindrical, conical, and arc surfaces, offering high precision.

• Threaded components: Excellent for cutting various types of threads, such as metric, imperial, and modular threads.

Key Industries:

• Automotive: Machining of engine parts, shafts, and transmission components.

• Aerospace: Precision turning of parts used in aircraft engines and systems.

• Heavy Machinery: Ideal for turning large components used in industrial machines, turbines, and equipment.

• General Manufacturing: Suitable for a broad range of industries requiring high-precision turning and threading.

The CKB/CKBP/CKBJ6180/61100 series CNC lathes offer a robust design with excellent rigidity and precision, making them ideal for medium-to-large batch production and high-precision machining of complex components. Their user-friendly programming, easy operation, and strong adaptability to various processes make them an excellent choice for industries seeking cost-effective, high-performance CNC lathes.
