Slant Bed CNC Lathe with rotating tool

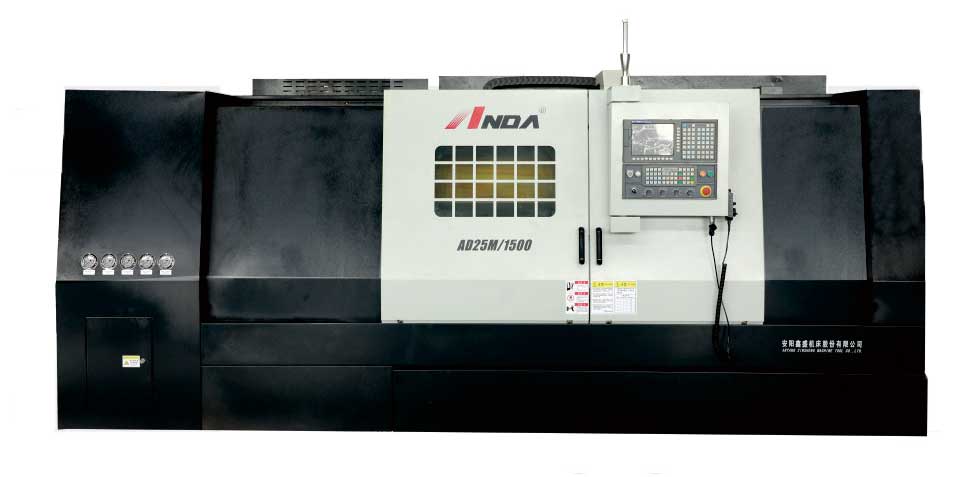

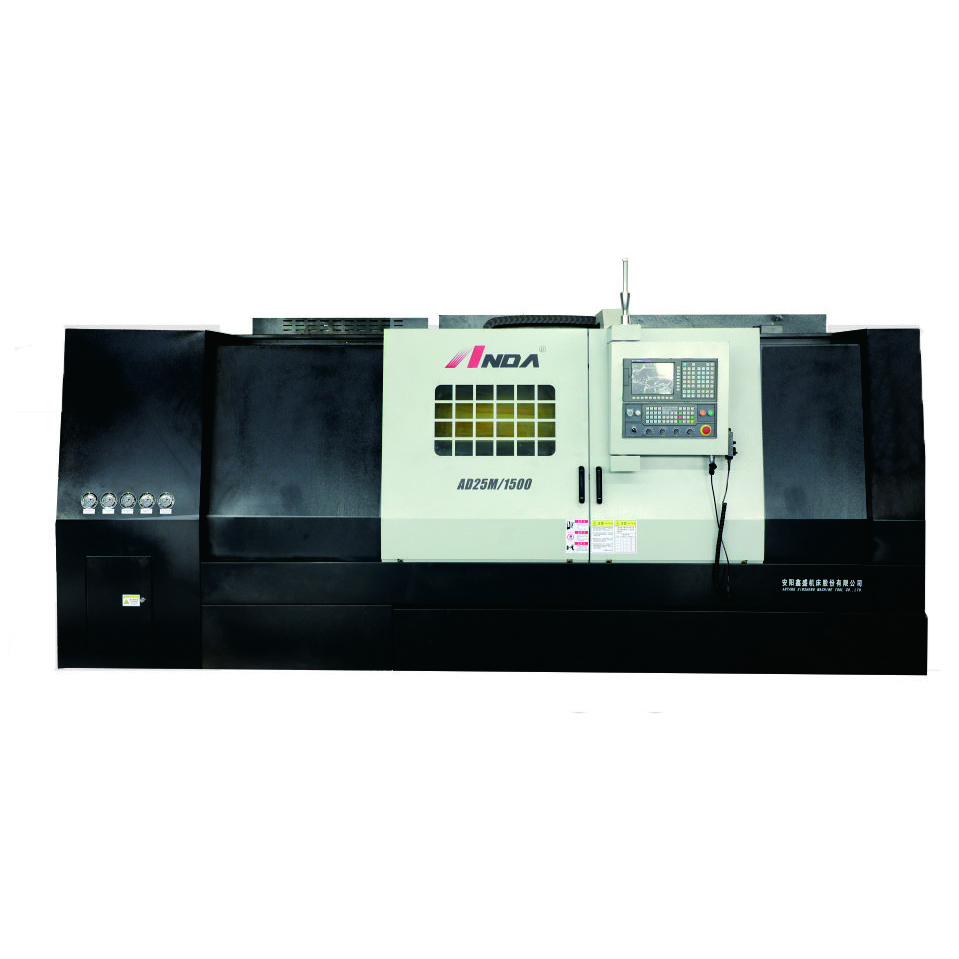

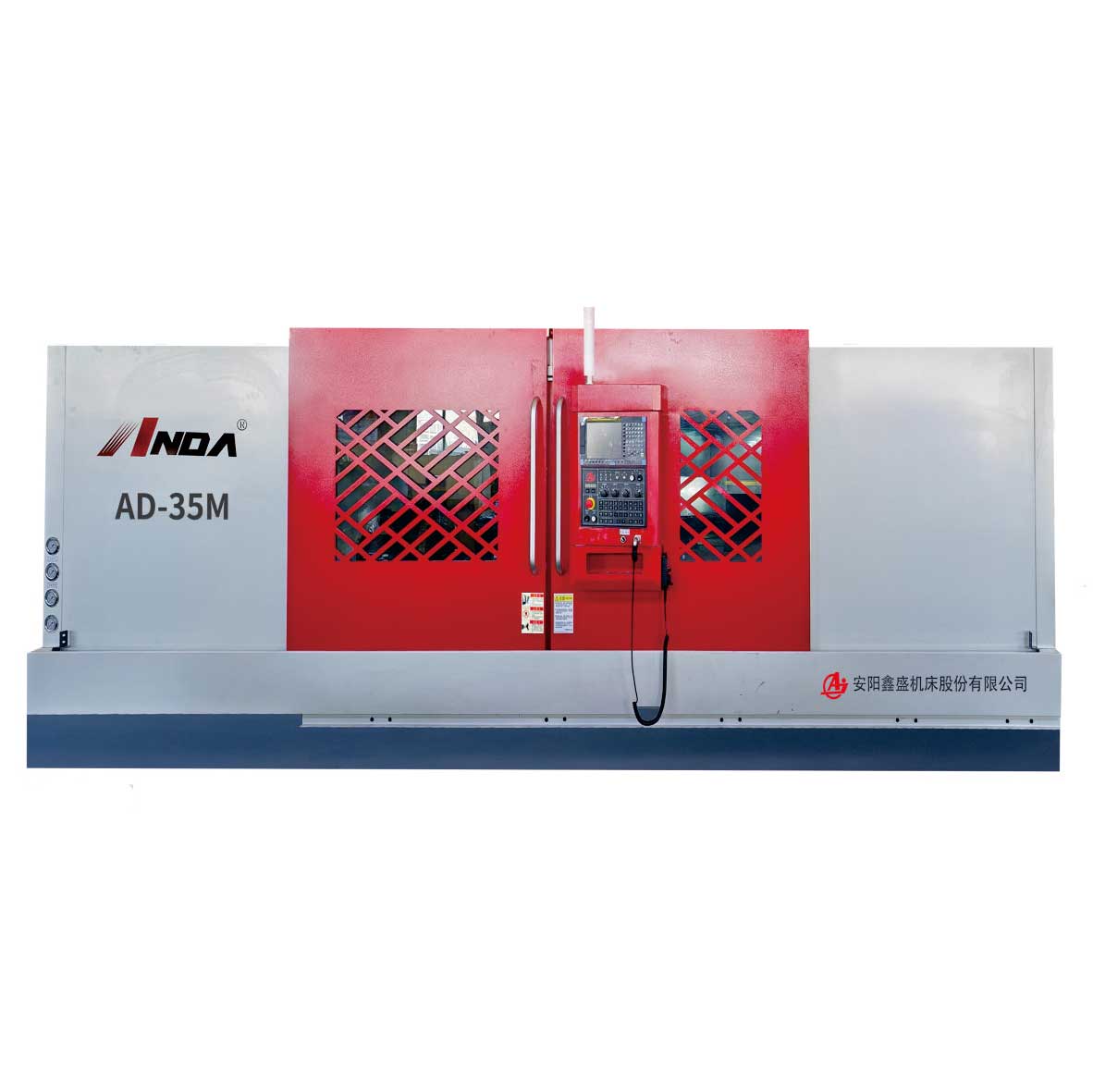

The AD Series Slant Bed CNC Lathe is a high-speed, precision CNC machining equipment developed using advanced Japanese technology. It is suitable for machining various complex-shaped shaft, sleeve, and disc-type components. Typical operations include turning of internal and external cylindrical surfaces, conical surfaces, arc surfaces, end faces, as well as grooving, chamfering, drilling, reaming, and threading.

Main Structural Features:

1. Base and Bed Structure:
   The base and bed adopt a box-type structure and are cast using integrated molding technology. Precision machining is completed in a single clamping process on a five-face machining center, ensuring excellent dimensional stability and long-term accuracy retention.

2. Slant Bed Design:
   A high-rigidity 45° slant-bed design is adopted. The slideway surfaces utilize plastic-bonding technology to optimize the dynamic and static performance of the feed system, including rigidity and friction resistance. The design includes a separate coolant tank to prevent leakage and facilitate maintenance.

3. Hydraulic Turret:
   Equipped with a hydraulic tool turret, the tool holders are interchangeable at all turret positions. The turret supports bi-directional indexing for the nearest tool change path, enabling fast, smooth, and reliable tool change operations.

4. High-Rigidity Spindle Structure:
   The headstock features a gearless design to minimize noise and vibration. The spindle assembly provides high rigidity to ensure machining stability and surface quality.

5. Hydraulic Chuck and High-Speed Cylinder:
   The machine is equipped with a hydraulic chuck and high-speed hydraulic cylinder, controlled via a foot switch, allowing convenient, safe, and reliable workpiece clamping.

6. Precision Feed Transmission:
   Both X and Z axes use large-diameter, high-precision ball screws with pre-tensioning and pre-loading. High-precision angular contact ball bearings are mounted at both ends to ensure excellent motion and positioning accuracy.

7. Safety and Protection:
   The lathe features a fully enclosed guard, electrical cabinet safety devices, and a safety interlocked operation door. The operation door is fitted with reinforced glass to ensure the safety of both the machine and the operator.

Parameter:
